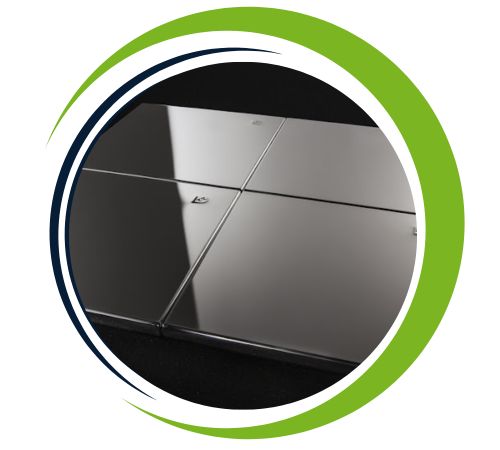

In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as your trusted partner for premium-grade metal solutions. We take pride in specializing in the supply and manufacture of Stainless Steel 440C sheets and plates, delivering robust materials engineered for the most demanding challenges. Our commitment is to provide local industries with direct access to high-performance steel, backed by reliable service and deep technical expertise, ensuring your projects are built on a foundation of quality and durability.
Stainless Steel 440C is distinguished by its high carbon content, which is the key to its exceptional performance. This composition results in outstanding hardness and superior wear resistance after proper heat treatment, making it one of the hardest alloys in the stainless family. It retains good corrosion resistance and can maintain a keen edge, offering a unique balance of strength and durability that stands up to intense friction and pressure.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | min. max. | 0.95 1.20 | – 1 | – 1 | – 0.04 | – 0.030 | 16.00 18.00 | – 0.75 | – | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
| Grade | WERKSTOFF NR. | UNS |
| SS 440C | 1.4125 | S44004 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 C | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 440C Sheet and Plates offers many advantages in paper and plate form. It is known for its high durability, which makes it ideal for applications that require damage resistance such as nails, bearings and valves. It has excellent corrosion resistance, especially in water and chemical environments. 440C also provides excellent strength and stability, maintaining its mechanical properties even at elevated temperatures. Furthermore, it is easily machined and manufactured, making it a standard method for precision manufacturing in industries including automotive, aerospace and medical.
This remarkable strength makes 440C sheets and plates ideal for a wide array of critical applications. They are commonly fashioned into vital components like high-quality ball bearings, valve parts, and precision measuring instruments that require unwavering reliability. You’ll also find this material in the aerospace and food processing industries, as well as in the crafting of durable knives and surgical tools, where its combination of hardness and corrosion resistance is absolutely essential for long-term performance.
