In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for robust metal solutions. We proudly offer high-quality Stainless Steel 17-4 PH sheets and plates, a premier material chosen for its exceptional blend of strength and corrosion resistance. Our commitment extends beyond supply to ensuring you receive material that meets the most demanding specifications, backed by local expertise and reliable service to support the growth of various industries across the Philippines and beyond.
This particular stainless steel is distinguished by its composition, primarily chromium and nickel, with additions of copper and niobium. What truly sets it apart are its impressive mechanical properties. Through a simple heat treatment process, it achieves remarkable hardness and high tensile strength, offering durability that surpasses many conventional stainless steels. This unique combination allows it to maintain its integrity and resist deformation even under significant stress and challenging environmental conditions.
| Grade | Stainless Steel 17-4 PH | UNS S17400 |
| Standard | ASTM B625 / ASME SB625 |
| Thickness | 0.1mm To 100 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
| Cr | Mn | Si | Ni | P | S | C | Cu | cb+Ta | |
| MIN | 15 | – | – | 3 | – | – | – | 3 | 0.15 |
| Max | 17.5 | 1 | 1 | 5 | 0.04 | 0.03 | 0.07 | 3.5 | 0.45 |
| UTS (Tensile) Ksi (Mpa) | .02% Yield Strength Ksi (Mpa) | Elongation % in 2” (51mm) | Hardness Rockwell C |
| 160 | 145 | 5 | 35 |
| (1103) | (1000) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Sheets and Plates offer numerous advantages, including high strength, excellent corrosion resistance, and outstanding toughness, even in challenging environments. DIN 1.4542 Sheets and Plates are heat-treatable, allowing customization of mechanical properties to suit specific applications. These sheets exhibit superior resistance to stress corrosion cracking and pitting, making them ideal for marine and chemical environments. Their exceptional weldability and ease of fabrication simplify manufacturing processes. With excellent performance at moderate to high temperatures, they are widely used in aerospace, petrochemical, and food processing industries, ensuring reliability, durability, and long service life in demanding
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 17-4 PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 17-4 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 17-4 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 17-4 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

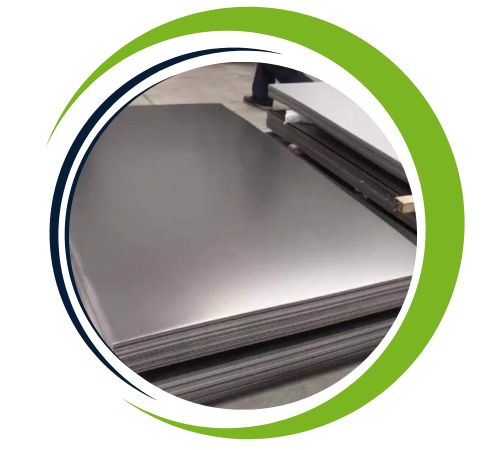

| Stainless Steel 17-4 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
| Deco | 0.3–3.5 | max. 1524 |
| Stainless Steel 17-4 PH Coil | 0.30–3.5 | max. 1,524 |
Yes, we offer custom sizes for Stainless Steel 17-4 PH Sheet and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
The versatility of 17-4 PH sheets and plates makes them indispensable across numerous fields. You’ll find them forming essential components in the aerospace and aviation sectors, in critical parts for chemical processing equipment, and within the powerful turbines of power generation plants. They are also the material of choice for manufacturing high-strength shafts, gears, and pump parts, where their resistance to wear and corrosion ensures longevity and reliability in even the most demanding operational environments.
