Welcome to Diaz Sheetsandplates, your trusted partner in Manila for high-quality Duplex Steel. In the heart of the Philippines’ industrial landscape, we stand by our commitment to providing robust and reliable sheet and plate solutions. We understand the demanding environments your projects face, which is why we focus on delivering materials that offer exceptional strength and corrosion resistance, helping you build with confidence and durability for the long term.
Duplex Steel is known for its two-phase microstructure of austenite and ferrite, giving it an excellent combination of high strength and toughness. This material typically boasts outstanding resistance to stress corrosion cracking and pitting, with yield strengths often double that of standard austenitic stainless steels. Its unique composition makes it incredibly durable, capable of withstanding harsh chemicals and saline environments where other metals might fail.
| Specifications | ASTM A240 / ASME SA 240 |
| Duplex Steel Plate Grades | 2205, 2507 |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Width | 10-2500mm |
| Length | 2m,2.44m, 3m as per requirement |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |

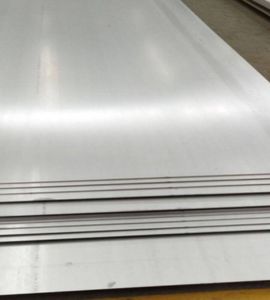

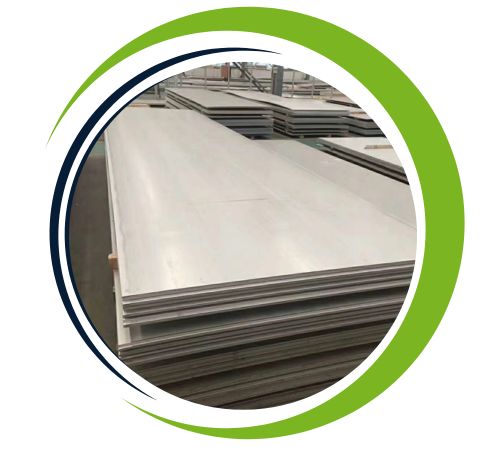

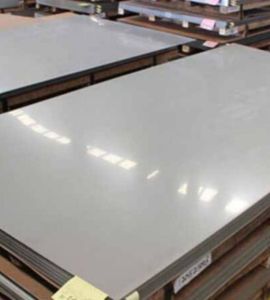

| Finish | Cold rolled sheet (CR), Hot rolled plate (HR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| MN | C | SI | S | P | CR | NI | MO | N |
|---|---|---|---|---|---|---|---|---|
| 2.0 max | 0.03 max | 1.0 max | 0.02 max | 0.03 max | min: 21.0 max: 23.0 | min: 4.5 max: 6.5 | min: 2.5 max: 3.5 | min: 0.08 max: 0.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Duplex Steel Sheets and Plates offer numerous advantages, including superior strength, high resistance to corrosion, and exceptional durability in aggressive environments. The combination of austenitic and ferritic microstructures provides enhanced resistance to stress corrosion cracking, pitting, and crevice corrosion. They are known for their high tensile strength, which makes them ideal for high-pressure and high-temperature applications. Additionally, Duplex Steel offers excellent weldability and formability, making it suitable for a wide range of industries, including oil and gas, chemical, marine, and structural applications. Its cost-effectiveness further adds to its appeal.
| Thickness (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) |
| 5 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 6 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 8 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 10 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 12 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 15 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 16 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 20 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 25 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 30 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 35 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 40 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 45 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 50 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 60 | 4000 x 2000 | ||||
| 70 | 4000 x 2000 | ||||
| 80 | 4000 x 2000 | ||||
| 90 | 4000 x 2000 | ||||
| 100 | 4000 x 2000 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |

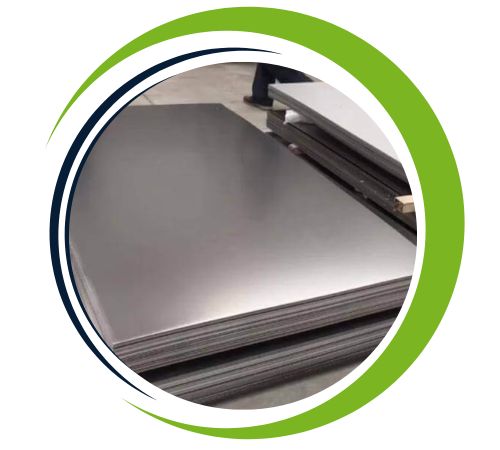

| Polished, brushed | 0.5–4.0 | max. 1524 |
The superior qualities of Duplex Steel make it indispensable across many key industries. You’ll find it heavily used in the construction of chemical processing plants, offshore oil and gas platforms, and desalination units where saltwater is a constant challenge. It’s also ideal for power generation, pulp and paper production, and in architectural projects demanding both aesthetic appeal and structural integrity. Essentially, it’s the go-to material for any application that requires a perfect balance of formidable strength and long-lasting corrosion resistance.
