In the heart of Manila’s industrious landscape, Diaz Sheetsandplates stands as a trusted partner for top-tier metal solutions. We take pride in delivering Stainless Steel 410 sheets and plates that combine exceptional durability with excellent value. Sourced and supplied with meticulous attention to quality, our 410 products are engineered to meet the rigorous demands of various Philippine industries, offering a reliable and cost-effective material for projects that require strength and a moderate level of corrosion resistance.
Stainless Steel 410 earns its reputation through a straightforward and robust composition, primarily built around chromium, which gives it a good resistance to corrosion. This martensitic grade can be hardened through heat treatment, achieving impressive strength and durability. It offers a solid balance of mechanical properties, including high tensile strength and impressive wear resistance, making it a practical choice where toughness is a priority over the extreme corrosion resistance of higher-grade alloys.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

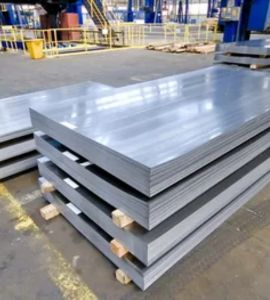

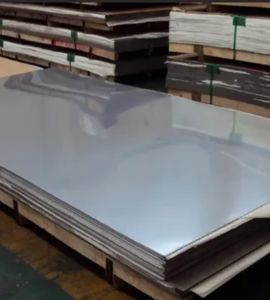

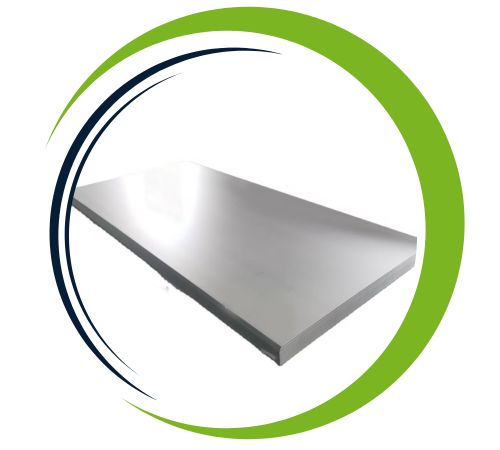

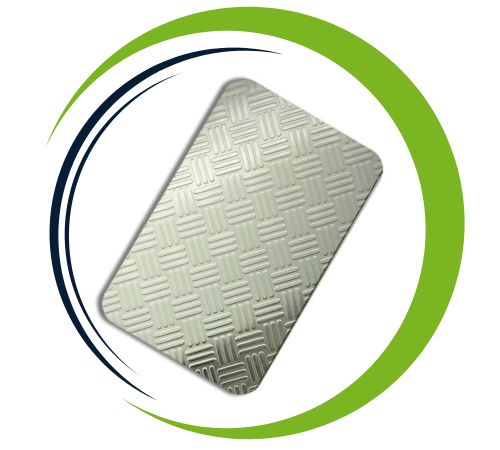

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

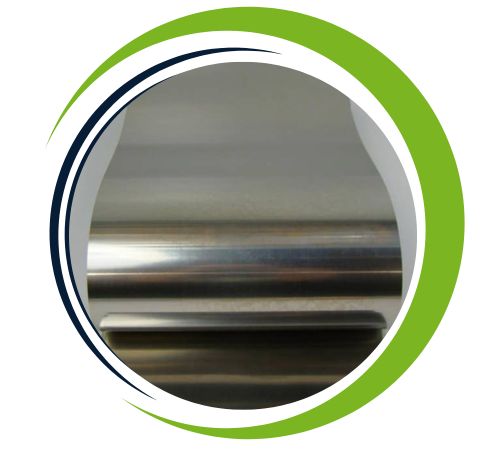

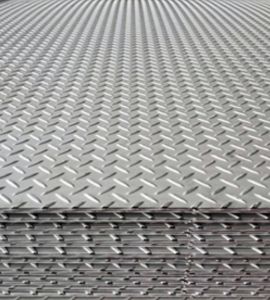

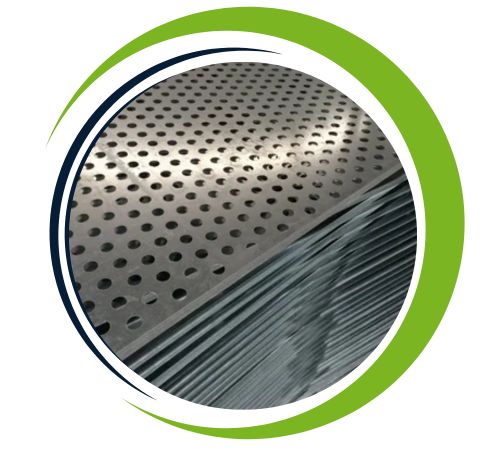

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
You’ll find Stainless Steel 410 sheets and plates hard at work in numerous essential applications. They are a common sight in the fabrication of industrial equipment like components for pumps and valves, as well as in architectural elements such as roofing and paneling. Its durability also makes it ideal for crafting high-wear items including cutting tools, kitchen utensils, and even components for mining and quarrying machinery. This versatility ensures it’s a go-to material for builders and engineers seeking a dependable and long-lasting steel.
