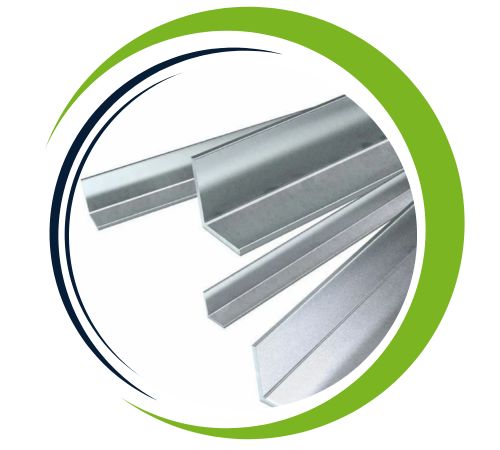

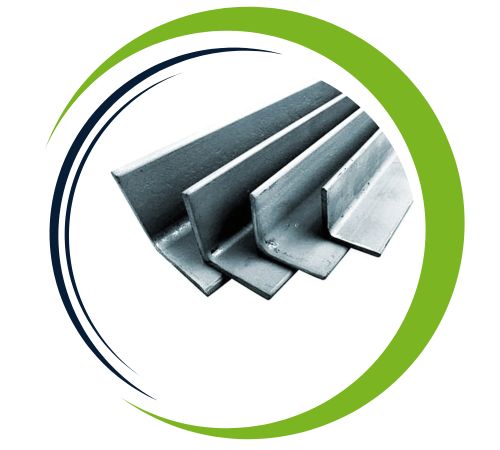

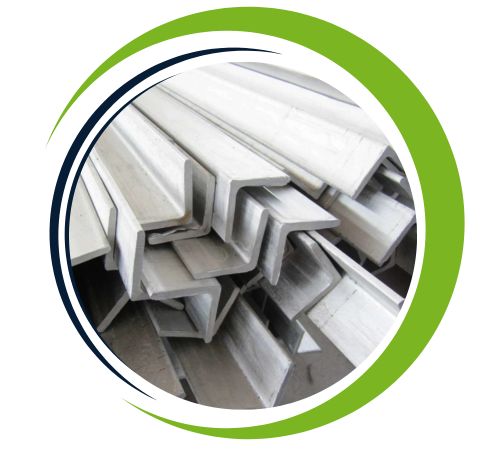

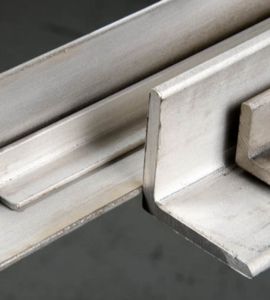

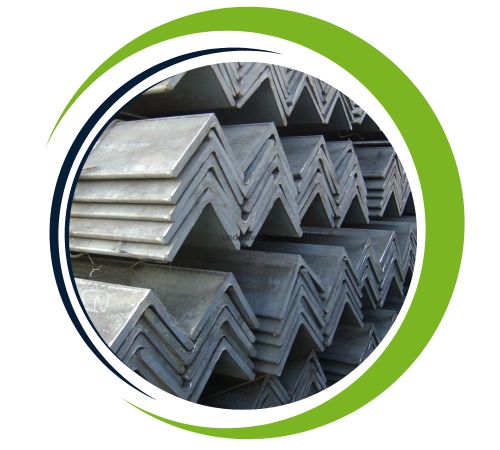

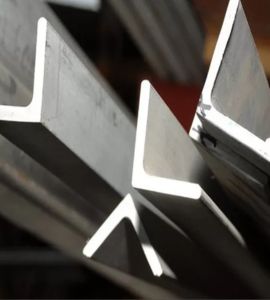

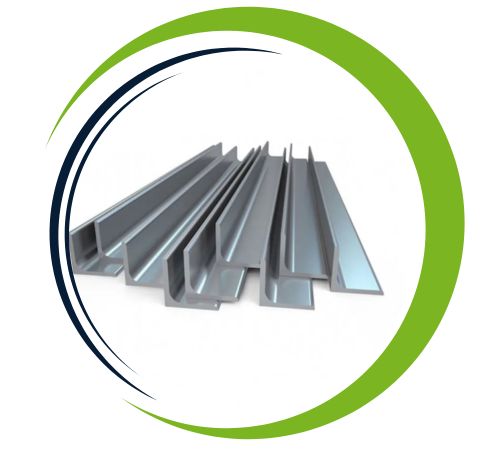

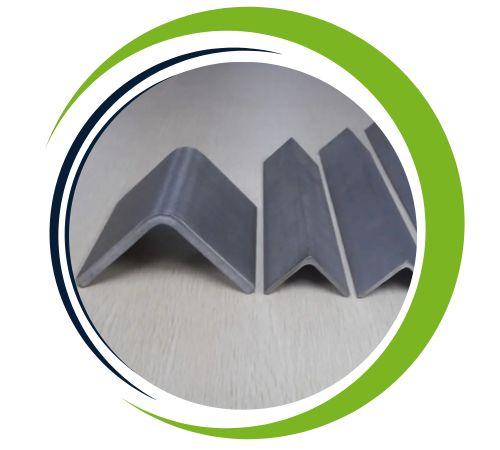

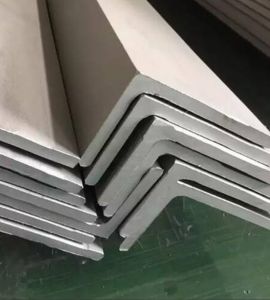

From the bustling industrial heart of Manila, Diaz Sheetsandplates stands as a trusted partner for businesses seeking unwavering quality in metal supply. We take pride in providing the Stainless Steel 309H Angle, a product engineered for resilience in the face of intense heat. This isn’t just another piece of steel; it’s a reliable component for projects that demand exceptional strength and oxidation resistance, ensuring your builds can withstand challenging environments with long-lasting durability.
The strength of the 309H grade comes from its carefully balanced composition, which includes higher levels of chromium and nickel for superior corrosion resistance. What truly sets it apart, however, is its boosted carbon content, which gives it outstanding high-temperature strength. This means it maintains its structural integrity and resists deformation under sustained heat, making it mechanically robust for applications where other materials would fail.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 309 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | 92 | 201 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 309 | S30900 | – | – | 1.4828 | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 309H angle provides excellent high heat resistance, making it ideal for hot environments. The high chromium and nickel content provides outstanding oxidation and corrosion resistance, as well as durability under extreme conditions. High carbon content increases its creep strength, making it suitable for long-term exposure to high temperatures. It exhibits excellent weldability and formability, making it easy to manufacture for structural applications. Furthermore, its strong mechanical properties and resistance to heater fatigue make it reliable for industries such as power generation, chemical processing and manufacturing, ensuring longevity and it works well.
You’ll often find this particular angle hard at work in high-temperature environments. It’s a staple in the construction of industrial furnaces, heat treatment equipment, and critical components within power generation plants. Its ability to handle thermal cycling makes it ideal for supporting systems in refineries and for general fabrication projects that face intense heat. Essentially, wherever extreme temperatures are a constant challenge, the 309H angle provides a dependable framework that stands the test of time and heat.
