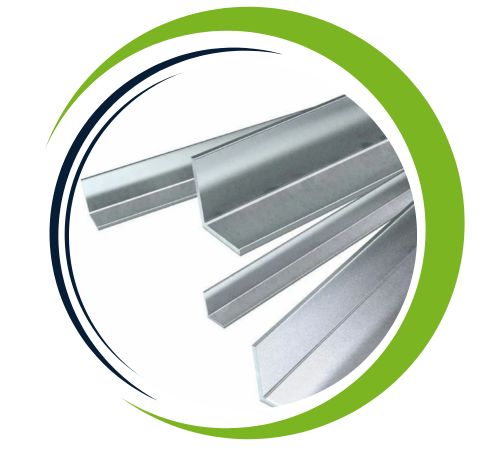

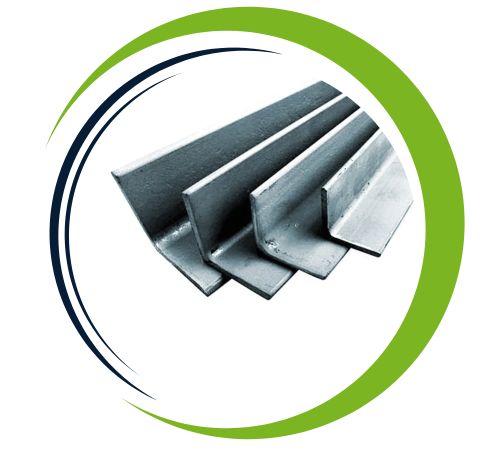

In the vibrant industrial landscape of Manila, Diaz Sheetsandplates has carved out a reputation for reliability and quality, particularly when it comes to structural components like the Stainless Steel 201 Angle. We understand that every project needs a strong foundation, which is why we are committed to providing products that blend durability with cost-effectiveness, ensuring your builds—from large-scale frameworks to intricate designs—stand the test of time with a trusted local partner by your side.
The composition of Stainless Steel 201 includes chromium, nickel, and manganese, which gives it excellent resistance to corrosion and a good strength-to-weight ratio. Its mechanical properties are quite impressive; this grade offers solid tensile strength and decent formability, making it a workable material for various fabrication needs. While it may not have the same nickel content as the 300 series, it provides a remarkably practical and more economical alternative for many projects where high corrosion resistance isn’t the absolute top priority.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 201 Angle provides excellent corrosion resistance, making it ideal for use in light to medium environments. Lightweight yet durable, it provides high stability and system integrity. Its excellent weldability and formability make it easy to manufacture in a variety of configurations. It has excellent oxidation resistance and works well at high temperatures. Affordable compared to other stainless steel grades, it maintains an attractive look with minimal maintenance. Its versatility allows it to be used in construction, automotive, and industrial applications, providing longevity and value.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
You’ll find Stainless Steel 201 Angle hard at work in countless settings. It’s a favorite for constructing sturdy frames for furniture, sleek handrails in commercial buildings, and supportive structures in architectural cladding. Its versatility also shines in the automotive and transportation industries, as well as in fabricating functional racks and storage units for warehouses. This angle brings a perfect combination of structural integrity and a clean, modern appearance to both industrial applications and everyday consumer goods, proving its worth as a fundamental building block.
