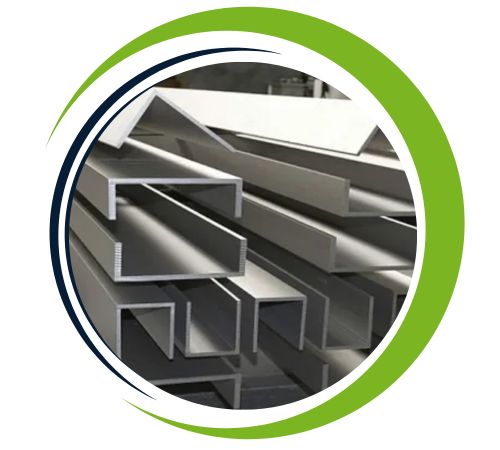

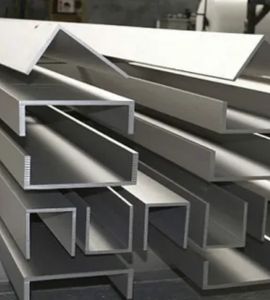

In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as your trusted partner for high-performance materials, specializing in the supply of Inconel 600 Channel. We understand that your projects demand not just materials, but reliability and resilience. With a commitment to quality and a deep understanding of the unique challenges faced by local industries, we provide expertly crafted Inconel channels that are built to withstand the most demanding environments, ensuring your structural and processing systems have the integrity and longevity they require.
Crafted with a precise composition primarily of nickel and chromium, Inconel 600 offers a remarkable balance of strength and resistance. This particular alloy maintains its excellent mechanical properties even under extreme heat, boasting high tensile strength and outstanding resistance to oxidation. It’s this inherent toughness that allows the channel form to provide exceptional structural support, resisting creep and maintaining its shape under heavy loads and thermal stress, making it a fundamentally reliable choice for critical frameworks.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | UNS | DIN | JIS | BS | GOST | AFNOR | EN |
| Alloy 600 | N06600 | 2.4816 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Alloy 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strengt | Yield Strength (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Channel offers numerous advantages, making it highly sought after in demanding industries. Its exceptional resistance to oxidation and corrosion ensures durability in high-temperature and chemically aggressive environments. The alloy maintains strength and structural integrity under extreme thermal conditions, offering excellent creep-rupture properties. Its versatility allows it to perform effectively in a wide range of applications, including chemical processing, aerospace, and marine industries. Additionally, Inconel 600 resists stress-corrosion cracking and chloride-ion-induced pitting, ensuring long-term performance in challenging environments, thus reducing maintenance and replacement costs.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 600 Channel to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
The real value of the Inconel 600 Channel is realized in demanding settings where failure is not an option. You’ll find it forming the essential skeletal framework in high-temperature furnaces, chemical processing equipment, and aerospace components. Its excellent corrosion resistance makes it ideal for use in harsh environments, from nuclear reactors to marine engineering. Essentially, wherever intense heat, pressure, or corrosive substances are present, this channel provides the durable, long-lasting support necessary to keep operations running safely and efficiently for years to come.
