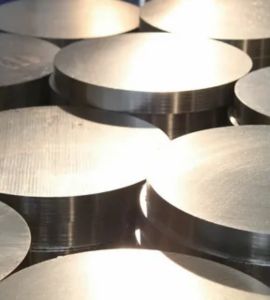

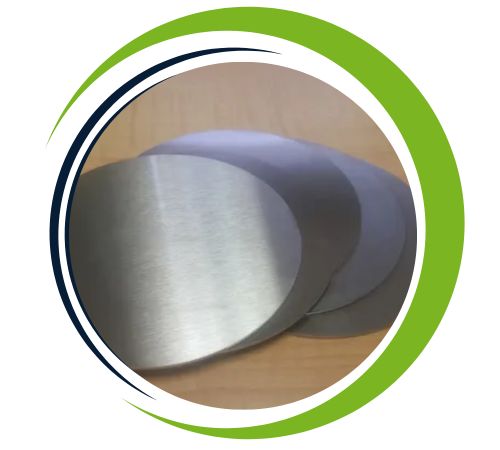

From the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted source for high-performance materials, specializing in the robust Inconel circle. We understand that your projects demand reliability from the ground up, which is why we provide these premium alloys with a commitment to quality and precision. Our team is dedicated to ensuring you receive the exact specifications needed, making us a go-to partner for industries throughout the Philippines and beyond who cannot compromise on the integrity of their core components.
The exceptional strength of an Inconel circle comes from its unique composition, primarily a blend of nickel and chromium, often enhanced with elements like molybdenum and niobium. This combination gives it an incredible resistance to heat, pressure, and corrosion, allowing it to maintain its structural integrity in environments that would quickly degrade lesser metals. It’s this tough, dependable nature that makes it a favorite for situations where failure is simply not an option, holding up beautifully under extreme stress and temperature.
Specifications: ASTM B168 / ASME SB168
Dimensions: ASTM, ASME and API
Thickness: 1 mm To 100 mm
Diameter: Upto 2000 mm
Circle Diameter: 3″ DIA up to 38″ DIA 1500 lbs max
Grade: Inconel UNS (N06600, N06601, N06625, N07718), DIN (2.4816, 2.4851, 2.4856, 2.4668)

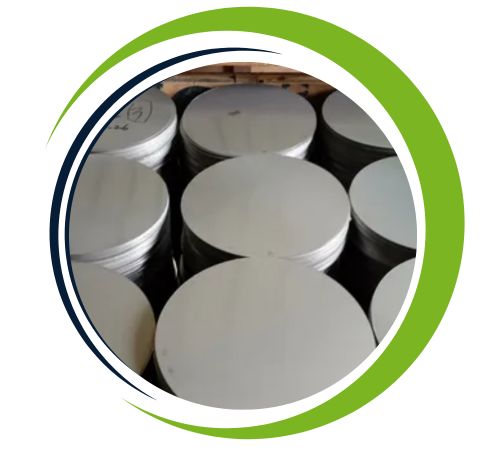

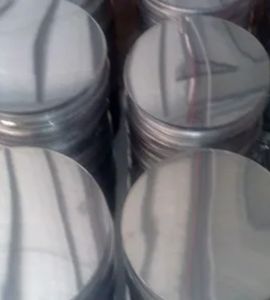

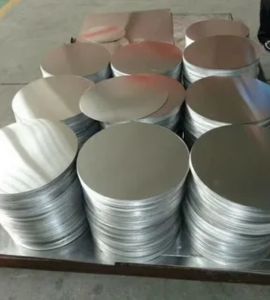

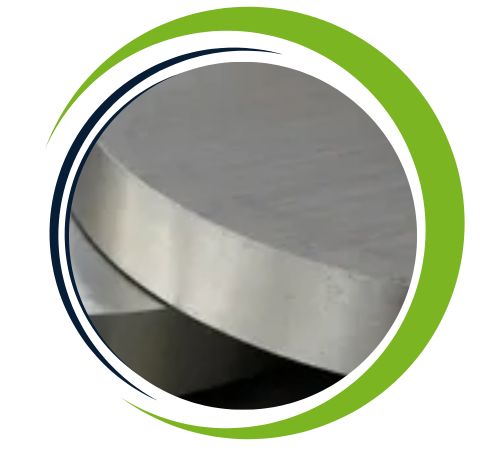

Type: Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | N600DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel circles offer several advantages, making them indispensable in demanding industries. They provide exceptional resistance to corrosion and oxidation, even in extreme temperatures and harsh chemical environments. With high tensile and yield strength, they maintain structural integrity under heavy stress and thermal cycling. Their superior fatigue and creep-rupture resistance ensure long-term durability, even at temperatures exceeding 800°C. Additionally, Inconel circles exhibit excellent weldability and retain mechanical properties after fabrication. These attributes make them ideal for aerospace, marine, and chemical processing industries, where reliability and performance are critical.
Yes, we offer custom sizes for Inconel Circle to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll typically find these durable Inconel circles serving critical roles across various demanding sectors. They are expertly fabricated into essential components for aerospace engines, chemical processing equipment, and marine applications where saltwater corrosion is a constant threat. In the energy sector, they are indispensable in both nuclear and conventional power plants. Essentially, wherever there are extreme temperatures, high pressures, or corrosive substances, the Inconel circle is there, working quietly in the background to ensure safety, efficiency, and long-lasting performance.
