Diaz Sheetsandplates is a reputable manufacturer and supplier located in Manila, Philippines, specializing in top-notch Titanium Grade 5 Sheets and Plates. Renowned for their commitment to excellence and precision, this company offers durable, corrosion-resistant titanium products that adhere to international standards. With a strong focus on innovation and customer satisfaction, Diaz Sheetsandplates serves a variety of industrial sectors, including aerospace, marine, chemical, and medical fields. Their Titanium Gr 5 Sheets and Plates are celebrated for their impressive strength-to-weight ratio, outstanding performance in extreme conditions, and long-lasting reliability in demanding applications.
These Titanium Gr 5 Sheets and Plates are made up of 90% titanium, 6% aluminum, and 4% vanadium, which significantly boosts their strength and resistance to corrosion. This alloy, commonly referred to as Ti-6Al-4V, boasts a tensile strength of about 950 MPa, a yield strength of around 880 MPa, and an elongation of 10–14%. It also maintains excellent fracture toughness, low density, and thermal stability, making it perfect for high-performance applications. These characteristics allow Titanium Gr 5 Sheets and Plates to excel in harsh environments and under significant mechanical stress.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

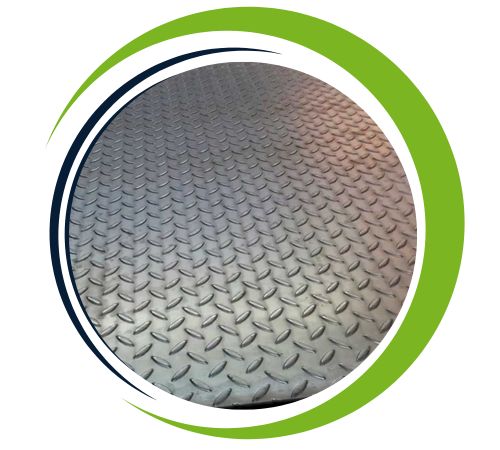

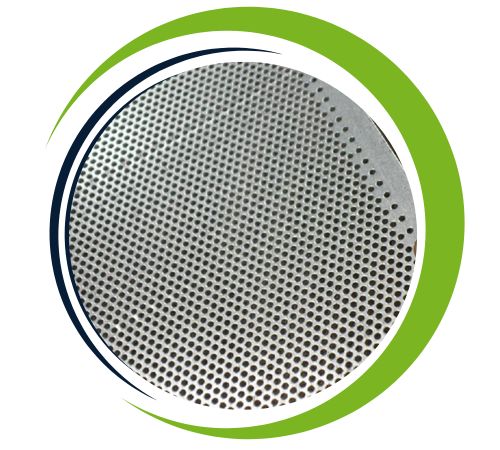

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

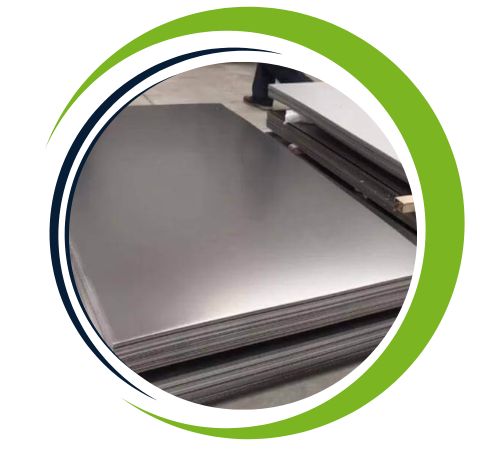

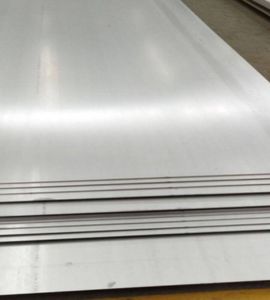

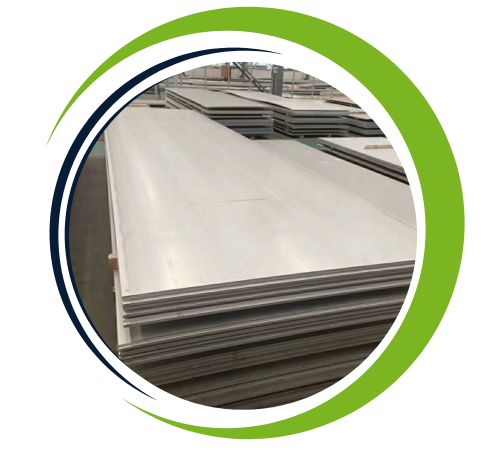

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
The Titanium Gr 5 Sheets and Plates from Diaz Sheetsandplates are widely utilized in industries that demand strength, corrosion resistance, and lightweight materials. They find extensive applications in aerospace components, marine hardware, chemical processing equipment, and medical implants, thanks to their biocompatibility and durability. Additionally, the automotive and power generation sectors make use of these sheets and plates for heat exchangers, turbine blades, and structural components. Their versatility, high performance, and ability to endure extreme temperatures make Titanium Gr 5 Sheets and Plates a go-to choice for critical engineering and industrial applications.
