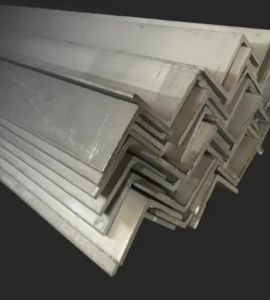

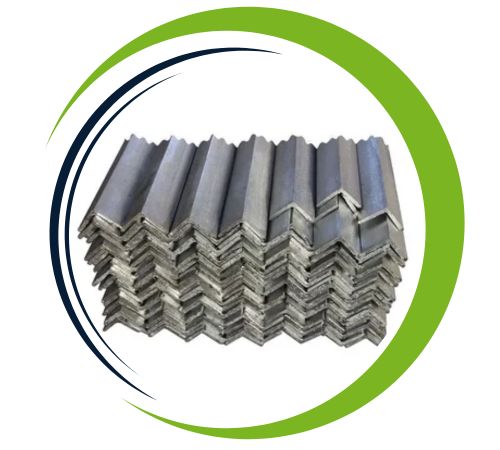

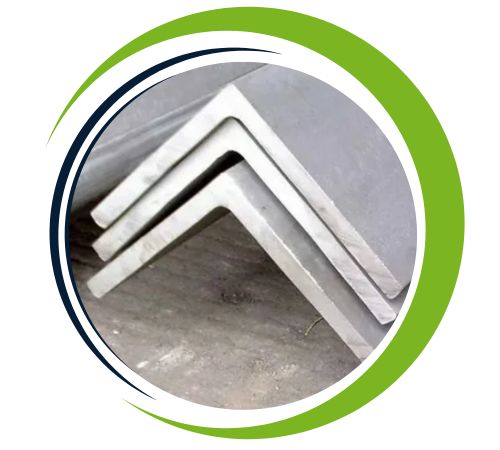

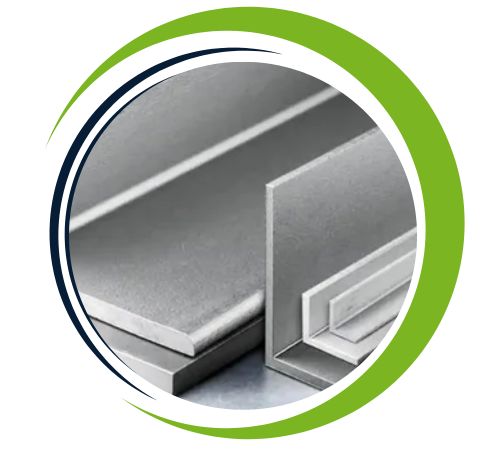

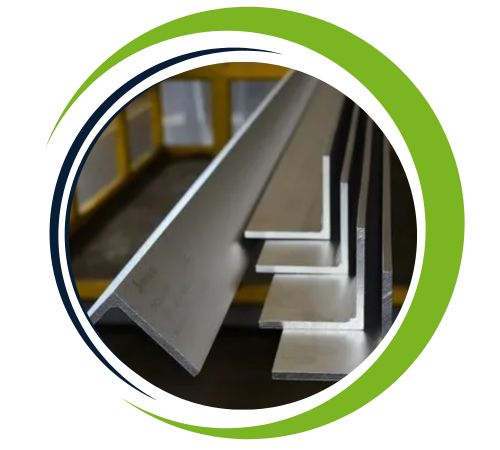

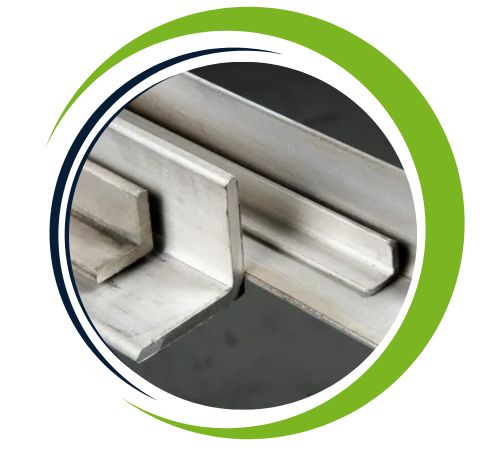

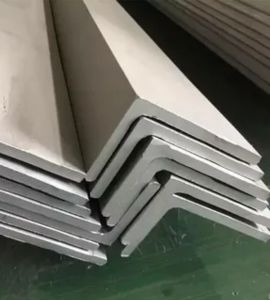

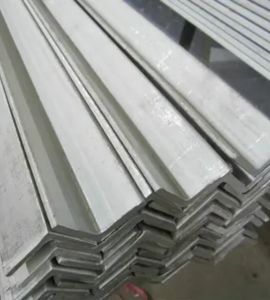

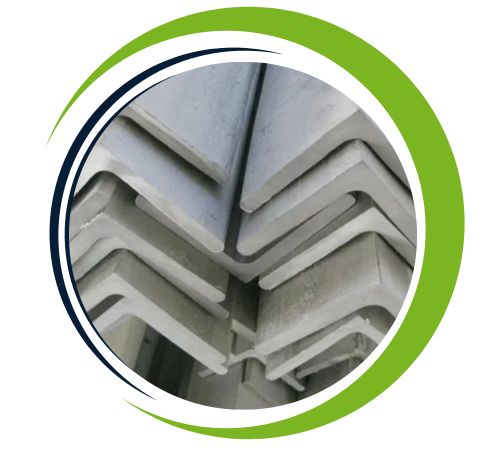

Diaz Sheetsandplates, a reputable manufacturer and supplier located in Manila, Philippines, specializes in top-notch Super Duplex Steel S32760 Angles. These angles are celebrated for their remarkable strength, durability, and resistance to corrosion. Designed to excel in harsh environments like seawater and chemical processing facilities, they are crafted using cutting-edge technology and adhere to strict quality standards. This ensures that every piece boasts exceptional dimensional accuracy and reliable performance. The Super Duplex Steel S32760 Angles are perfect for applications that demand high tensile strength, excellent weldability, and resistance to stress corrosion, making them a go-to choice for critical industrial and structural projects.
These angles are primarily made up of 25% chromium, 7% nickel, 3.6% molybdenum, along with trace amounts of tungsten, nitrogen, and copper. This unique blend provides a high tensile strength of about 800 MPa and a yield strength of roughly 550 MPa. The alloy is known for its outstanding resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. Thanks to its balanced duplex microstructure, it offers superior toughness, impact strength, and corrosion resistance in both oxidizing and reducing environments.
Specifications : ASTM A790 / ASME SA790
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Super Duplex Steel S32760 Angle offers several key advantages, making it highly suitable for demanding applications. It provides exceptional resistance to corrosion, including pitting, crevice, and stress corrosion cracking, especially in harsh environments like seawater and chemical processing. The high strength of S32760 ensures durability under heavy loads and extreme conditions, while its resistance to high temperatures enhances its performance in high-pressure systems. Additionally, its excellent weldability and formability allow for easy fabrication. These features make S32760 an ideal choice for industries such as oil and gas, marine, and chemical processing.
Yes, we offer custom sizes for Super Duplex Steel S32760 Angle to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Super Duplex Steel S32760 Angles find extensive use in offshore oil and gas platforms, marine engineering, desalination plants, heat exchangers, and the chemical processing industry. Their ability to endure high stress and corrosive conditions makes them ideal for structural frameworks, bridges, pressure vessels, and load-bearing components. Additionally, they play a crucial role in power generation and water treatment facilities, where strength and corrosion resistance are paramount. These angles promise a long service life and dependable performance even in the most challenging industrial and marine settings.
