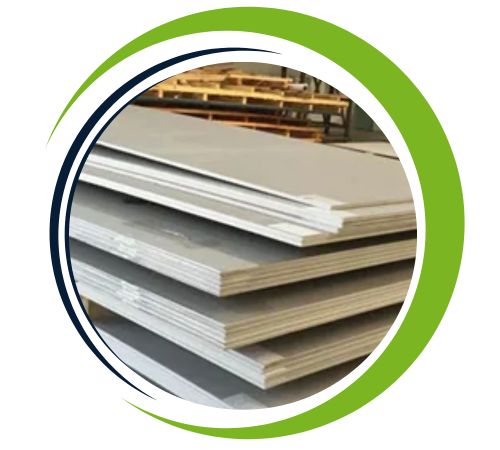

Nestled in the heart of Manila’s industrial landscape, Diaz Sheetsandplates has built a solid reputation as a trusted source for high-grade steel. We understand that the foundation of any great project lies in the quality of its materials. That’s why we are a dedicated manufacturer and supplier of SA 515 grade 60 sheets and plates, providing local industries with the reliable, high-strength components they need to build with confidence and precision, right here in the Philippines.
SA 515 grade 60 is a carbon steel plate specifically designed for pressure vessel applications. Its chemical composition is carefully balanced, primarily iron and carbon, with additions like manganese and silicon to enhance strength. Mechanically, it offers a minimum yield strength of 30,000 ksi and a tensile strength ranging from 60,000 to 75,000 psi. This combination ensures excellent resistance to deformation and rupture under high internal pressures and elevated temperatures.
| Specifications | ASTM A515 Gr. 60 / ASME A515 Grade 60 | |
| Thickness |
| |
| Length | 3000 mm – 8000 mm | |
| Width | 1500-3500mm | |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) | |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| A515 Grade 60 | 0.24-0.31 | 0.98 max | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Thickness | Yield | Tensile | Elongation |
|---|---|---|---|---|
| A515 Grade 60 | 50-200mm | MPa -220 min | MPa – 415-550 | 21-25% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
SA 515 Grade 60 sheets and plates offer several advantages, including excellent strength, durability, and resistance to high temperatures and pressure, making them ideal for use in boilers, pressure vessels, and heat exchangers. Their outstanding weldability and formability ensure easy fabrication and installation. These materials also provide good machinability and long-term performance, even in challenging environments. With their ability to withstand thermal stress and corrosion, SA 515 Grade 60 sheets and plates are a reliable choice for industries requiring safe and efficient operation in demanding conditions.
Yes, we offer custom sizes for ASTM SA 515 grade 60 Sheets and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
The primary use of SA 515 grade 60 is in the fabrication of boilers and pressure vessels found in power generation plants, refineries, and chemical processing facilities. You’ll often find it in critical components like reactor shells, distillation columns, and heat exchangers. Its reliability also makes it suitable for large-scale storage tanks that house everything from liquified gases to various process liquids in demanding industrial environments. It’s truly the backbone of countless structures that drive modern industry forward.
