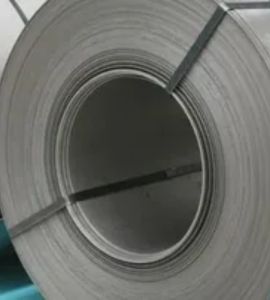

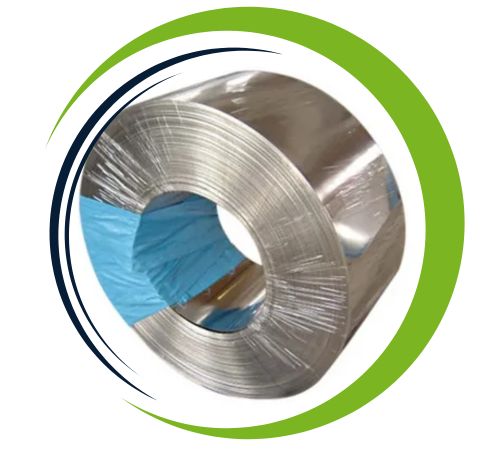

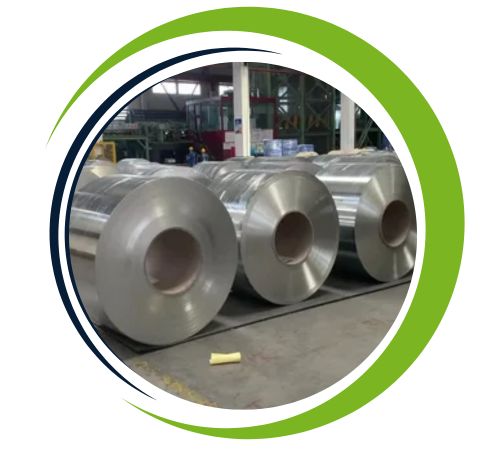

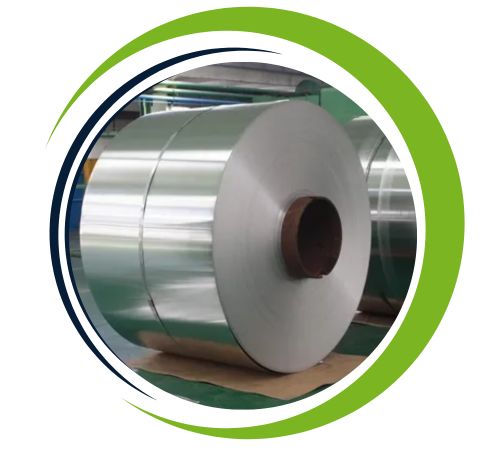

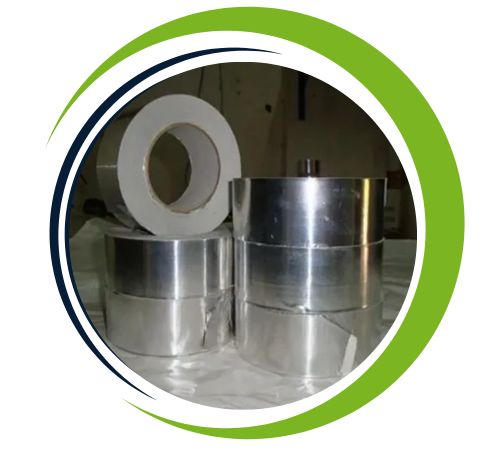

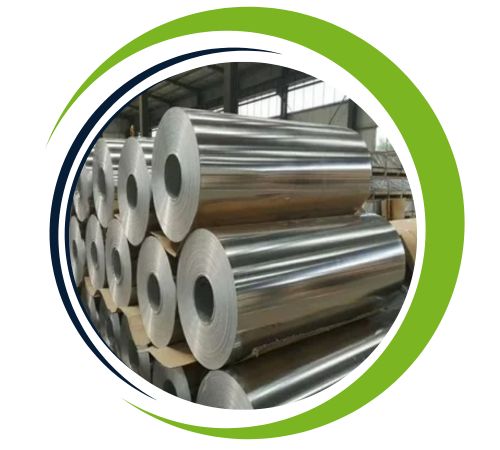

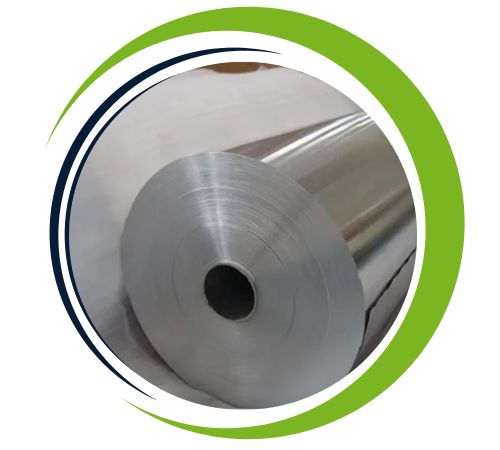

From the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as your trusted partner for premium metal solutions, specializing in the supply of Incoloy 800 foils. We understand that the success of your most demanding projects hinges on the reliability of your materials, which is why we are committed to providing foils that combine exceptional quality with the strength to perform under intense pressure. Our dedication ensures you receive a product that not only meets but exceeds the rigorous standards required for high-temperature and corrosive environments.
The exceptional nature of Incoloy 800 stems from its specific composition, primarily a blend of nickel, iron, and chromium, with additions of titanium and aluminum for stability. This alloy is engineered to retain its strength and resist oxidation and carburization even when exposed to extreme heat. The resulting foils are not only remarkably strong and durable but also maintain excellent structural integrity, offering a reliable combination of high tensile strength and good creep-rupture properties that are essential for long-term performance in challenging conditions.
Specifications : ASTM / ASME SB 409
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Grade : Incoloy Alloy 800 (UNS No. N08800) Coils & Strips
Hardness : Soft, Hard, Half Hard, Spring Hard, etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | GOST | OR | BS | JIS | EN |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | ЭИ670 | XH32T | NA 15 | NCF 800 | X10NiCrAlTi32-20 |
| Incoloy 800 | C | Cr | Fe | S | Ni | Mn | Si | Cu |
| 0.10 max | 19.00 – 23.00 | 39.50 min | 0.015 max | 30.00 – 35.00 | 1.50 max | 1.00 max | 0.75 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800 Foils offer exceptional advantages, making them ideal for demanding industrial applications. Their high-temperature strength ensures reliable performance in extreme environments, while excellent oxidation and carburization resistance prolongs service life. The alloy’s superior corrosion resistance in acidic and oxidizing conditions adds to its versatility. Incoloy 800 foils maintain mechanical stability under thermal cycling, reducing deformation risks. Their ease of fabrication and welding supports diverse manufacturing needs. Commonly used in heat exchangers, petrochemical equipment, and nuclear power plants, these foils are a trusted choice for durability and operational efficiency.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Incoloy 800 Foils to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
The versatility of Incoloy 800 foils makes them indispensable across a wide spectrum of critical industries. You will find them forming the core of heat exchangers and furnace components, where their resistance to thermal stress is paramount. In the chemical processing sector, these thin, robust sheets are essential for lining equipment and constructing components that must withstand corrosive acids and salts. Furthermore, their reliability extends to vital applications in nuclear power generation and aerospace engineering, proving essential wherever unwavering performance under duress is non-negotiable.
