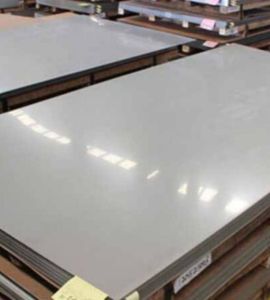

In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for high-performance materials. We take pride in supplying and manufacturing Haynes 25 (L605) sheets and plates, offering a reliable local source for this exceptional superalloy. Our commitment is to provide industries across the Philippines with top-tier materials that meet rigorous international standards, ensuring your projects are built on a foundation of quality and durability right from the start.
Haynes 25, also known as L605, is a cobalt-chromium-nickel-tungsten alloy renowned for its impressive strength. It maintains its mechanical integrity even when subjected to extreme temperatures up to 1800°F, resisting oxidation and corrosion remarkably well. This combination of high tensile and creep strength makes it a go-to material for applications where ordinary steels would quickly fail, offering long-lasting performance under the most demanding thermal and mechanical stresses.
| Standard Specification : | AMS 5759, AMS 5537 |
| Dimensions : | AMS, AMS, API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat T |
| Grade | C% | Si≤ % | Mn≤ % | P≤ % | S≤ % | Cr% | Ni% | Co% | Fe % | W % |
| Haynes 25 / L605 | 0.05-0.15 | 0.40 | 2.00 | 0.02 | 0.015 | 19.0-21.0 | 9.00-11.0 | Rest | ≤ 3.00 | 14.0-16.0 |
| Grade | 0.2% Yield strength Rp ≥ N/mm² | Tensile strength Rm N/mm² | Elongation A5 | Resistant on air up to°C | Modulus of elasticity kN/mm² |
| Haynes 25 / L605 | 345 | 830-1130 | 25 | 1090 | 225 |
| STANDARD | Material No | EN Designation | UNS | Alloy |
| Haynes 25 / L605 | 2.4964 | CoCr20W15Ni | R30605 | 25 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Haynes 25 (L605) sheets and plates provide exceptional high-temperature strength and outstanding resistance to oxidation, carburization, and sulfidation, making them ideal for harsh environments They wear well and resist corrosion ensure durability, especially in chemical applications and aerospace applications . Excellent mechanical strength is maintained up to 1800°F (980°C) and allows for high formability and weldability. The cobalt-based structure of the compound provides durability and creep resistance, supporting reliability under extreme stresses. These features make Haynes 25 paper and plate the preferred choice for high-performance applications in hostile environments.
| Density | Lb/in3 | 0.327 |
| g/cm3 | 9.07 | |
| Melting Point | oF | 2425-2570 |
| oC | 1330-1410 | |
| Specific Heat | Btu/lb-oF | 0.096 |
| J/kg-oC | 403 | |
| Expansion Coefficient | 25-100oC | 12.8 |
| 70-200oF | 7.1 | |
| Thermal Conductivity | W/m-oC | 10.5 |
| BTU-in/hr-ft2–oF | 72 | |
| Electrical Resistivity | µohm-cm | 88.6 |
| µohm-in | 34.9 |
The versatility of these sheets and plates makes them ideal for the most challenging environments. You’ll find them forming critical components in aerospace engines, industrial gas turbines, and high-temperature furnace systems. They are also essential in medical implants due to their excellent biocompatibility. From intricate parts in chemical processing equipment to components in power generation, this material provides the reliable, high-performance solution that engineers and designers count on for mission-critical applications where failure is not an option.
