Nestled in the industrial heart of Manila, Philippines, Diaz Sheetsandplates stands as your dedicated partner for high-performance alloys. We take pride in supplying top-tier Hastelloy C276 sheets and plates, precision-processed to meet the rigorous demands of various sectors. Our commitment goes beyond delivery; we offer reliable support, ensuring you receive not just the material, but the expertise needed for your most critical projects, right here from our local hub.
This nickel-chromium-molybdenum alloy is fortified with tungsten, offering exceptional strength and toughness. It maintains its structural integrity even after short periods of exposure to temperatures up to 1000°C. The sheets and plates exhibit excellent fatigue strength and are known for their ease of fabrication, including welding and hot forming, making them versatile for demanding fabrication projects.

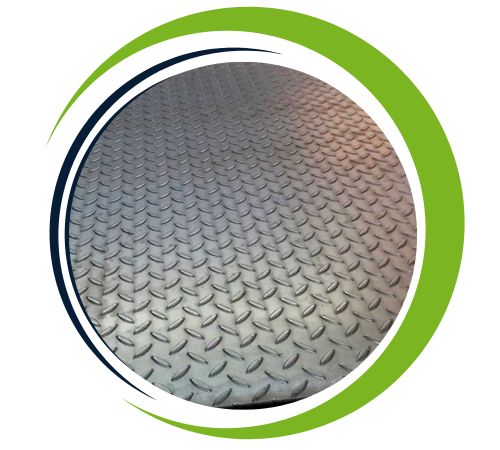

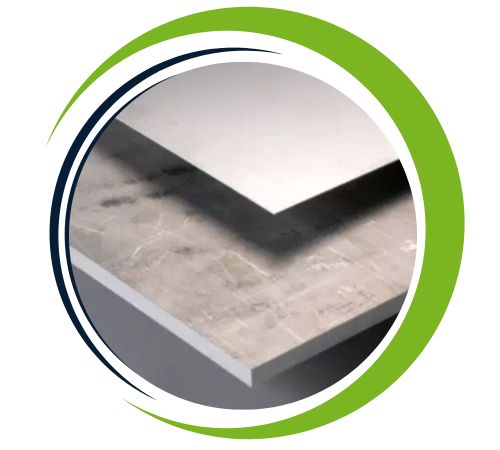

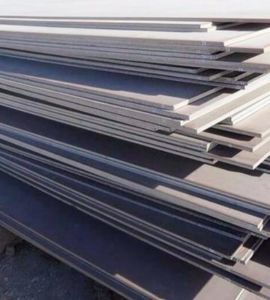

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | Hastelloy C276 – ALLOY C-276 (Ni/ 15Cr/ 16Mo/ 4W)-UNS N10276 , ASTM B575 UNS N10276 |
| UNS N10276 Plate Length | 0-12mm or as required |
| Specification of Alloy C276 Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

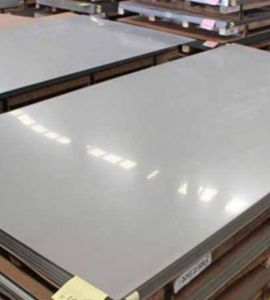

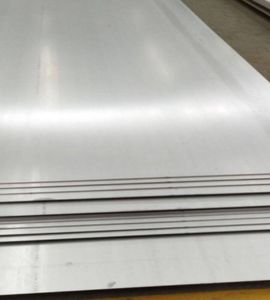

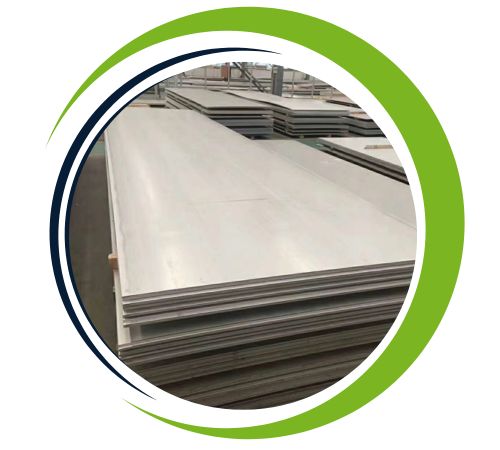

| C276 Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | And | S | Co | In | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000, MPa – 790 | Psi – 52,000, MPa – 355 | 40 % |
| Material | Ultimate Tensile (min) | Yield Strength (Min) | Elongation % | Hardness Rb | ||
|---|---|---|---|---|---|---|
| Ksi | Mpa | Ksi | Mpa | |||
| C276 Plate | 107.4 | 741 | 50.3 | 347 | 67 | 89 |
| C276 Sheet | 115.5 | 796 | 54.6 | 376 | 60 | 86 |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C276 sheets and plates offer exceptional advantages, making them ideal for challenging industrial environments. They provide outstanding resistance to a wide range of corrosive media, including strong oxidizers, reducing agents, and chlorides, minimizing the risk of pitting, crevice corrosion, and stress corrosion cracking. Their high-temperature strength and excellent weldability ensure reliability in critical applications, such as chemical processing and marine systems. Additionally, Hastelloy C276 maintains superior performance in both acidic and alkaline environments, offering durability, extended service life, and reduced maintenance, even under extreme conditions, enhancing operational efficiency and safety.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
From the aggressive chemicals in scrubbers and reactors to the salty breezes in marine environments, Hastelloy C276 sheets are the go-to choice. You’ll find them forming the backbone of pollution control systems, ensuring safety in industrial furnaces, and within key components of pharmaceutical and wastewater treatment plants. Their resilience makes them ideal for demanding applications like heat exchangers and chemical processing equipment that face tough, corrosive conditions every day.
