In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for robust and reliable metal solutions. We specialize in providing high-quality Aluminium Bronze sheets and plates, materials celebrated for their exceptional strength and corrosion resistance. Our commitment is to deliver not just a product, but a dependable foundation for the demanding projects of our local industries, ensuring that Filipino craftsmanship is supported by materials that are built to last and perform under pressure.
Our Aluminium Bronze is an exceptional alloy, primarily copper with a significant aluminium addition, which gives it a remarkable set of properties. This composition results in a material that is not only incredibly strong and wear-resistant but also highly resistant to corrosion, even in harsh saltwater environments. It maintains its integrity under high stress and offers excellent fatigue resistance, making it a go-to choice for components that must endure constant, heavy use without failing.
| Specifications | ASTM B505 / ASME SB505, BS EN 10088-2, en 10028-7, IS 6911, AMS 4640, UNS C63000, UNS C95800, UZ19AL6, UNS C95510, AMS 4880 |
| Dimensions | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| International Standard of Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) | EN 10258/ DIN 59381 EN 10151 EN 10088 |

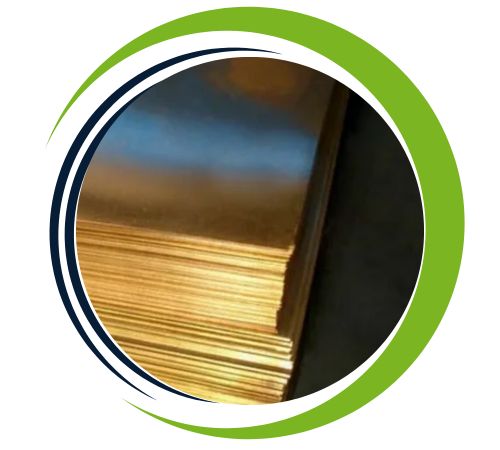

| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

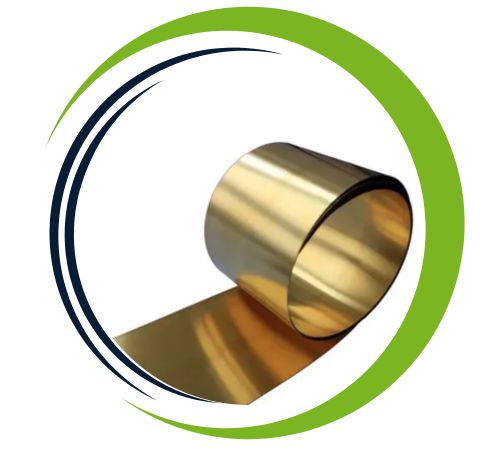

| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Properties | Metric | Imperial |
| Density | 7.21 g/cc | 0.260 lb/in³ |
| Melting point | 1047°C | 1917°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Alloy | Aluminium | Iron | Nickel | Manganese | Zinc | Arsenic |
| CuAl5 | 4.0–6.5% | 0.5% max. | 0.8% max. | 0.5% max. | 0.5% max. | 0.4% max. |
| CuAl8 | 7.0–9.0% | 0.5% max. | 0.8% max. | 0.5% max. | 0.5% max. | |
| CuAl8Fe3 | 6.5–8.5% | 1.5–3.5% | 1.0% max. | 0.8% max. | 0.5% max. | |
| CuAl9Mn2 | 8.0–10.0% | 1.5% max. | 0.8% max. | 1.5–3.0% | 0.5% max. | |
| CuAl10Fe3 | 8.5–11.0% | 2.0–4.0% | 1.0% max. | 2.0% max. | 0.5% max. | |
| CuAl10Fe5Ni5 | 8.5–11.5% | 2.0–6.0% | 4.0–6.0% | 2.0% max. | 0.5% max. |
| Properties | Metric | Imperial |
| Hardness, Rockwell C | 27 | 27 |
| Tensile strength (M30 and O61 tempers) | 690 MPa | 100000 psi |
| Yield strength (M30 and O61 tempers) | 380 MPa | 55100 psi |
| Elongation at break (in 50 mm, 1% reduction in area) | 1.00% | 1.00% |
| Elastic modulus | 117 GPa | 17000 ksi |
| Compressive yield strength (at permanent set of 0.1%) | 450 MPa | 65300 psi |
| Compressive yield strength (at permanent set of 1%) | 880 MPa | 128000 psi |
| Poisson’s ratio | 0.34 | 0.34 |
| Charpy impact (@ 18.0 – 100°C/ -0.400 – 212°F, keyhole) | 3.00 J | 2.21 ft-lb |
| Izod impact (@ 18.0 – 100°C/ -0.400 – 212°F) | 3.00 J | 2.21 ft-lb |
| Fatigue strength (@# of cycles 1.00e+8, M30 temper) | 460 MPa | 66700 psi |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 20 | 20 |
| Shear modulus | 42.3 GPa | 6140 ksi |
Aluminum bronze sheets and plates offer many key advantages, including exceptional corrosion resistance, especially in marine and acidic environments, making them ideal for offshore and underwater applications Their high tensile strength and excellent resistance anti-degradation ensures delay in demanding industries such as aerospace, automotive and heavy machinery . These compounds also have high electrical thermal conductivity, making them suitable for heat exchangers and electrical components. Moreover, the oxidation resistance and extreme temperature resistance of the aluminum lead make it a reliable candidate for a wide range of industrial applications
The unique strength and corrosion resistance of our Aluminium Bronze sheets make them indispensable across many critical sectors. They are commonly used for heavy-duty bushings, bearings, and wear plates in machinery, as well as for components in marine hardware like ship propellers and pumps that constantly face seawater. You’ll also find them in the chemical industry for handling corrosive substances and in architectural applications where both durability and a distinctive, warm gold-like appearance are desired for lasting impact.
