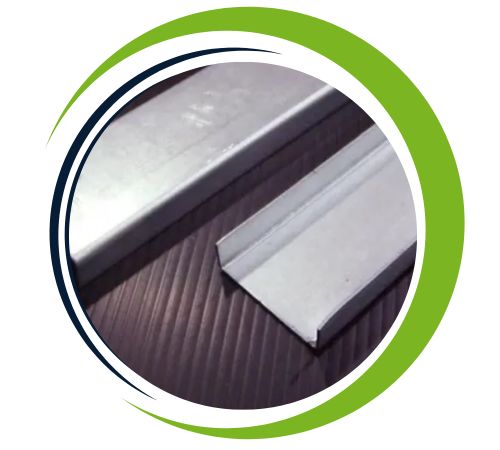

For over a decade, Diaz Sheetsandplates has been a trusted name in Manila, providing high-grade materials to the Philippine industrial sector. We take pride in our reliable supply and deep expertise, especially when it comes to specialized alloys like the Alloy 20 Steel Channel. Our team understands the demanding environments you operate in, which is why we ensure our channels meet the highest standards for durability and performance, offering a dependable solution for your most challenging projects right here in the Philippines.
This particular channel is crafted from a nickel-iron-chromium alloy, uniquely enhanced with copper and molybdenum. This specific composition gives it outstanding resistance to corrosive substances, particularly sulfuric acid, making it far more durable than standard stainless steels. It also possesses excellent mechanical strength and toughness, allowing it to maintain its structural integrity under high stress and in elevated temperature conditions, providing long-lasting reliability where other materials might fail.
Specifications : ASTM B473, B464, B468 / ASME SB473, SB464, SB468
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Mo | Cu |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 0.045 max | 29.85 min | 32.00 – 38.00 | 19.00 – 21.00 | 2.00 – 3.00 | 3.00 – 4.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Alloy 20 steel channels offer numerous advantages, making them ideal for corrosive environments. Their high resistance to sulfuric acid, phosphoric acid, and other aggressive chemicals ensures longevity and reliability in industrial applications. The alloy’s exceptional strength and durability make it suitable for structural applications where corrosion is a concern. Additionally, Alloy 20 exhibits excellent weldability and formability, facilitating ease of fabrication. Its resistance to stress corrosion cracking and pitting further enhances its suitability for critical applications in the chemical, pharmaceutical, and food processing industries. These properties contribute to reduced maintenance and extended service life.
Yes, we offer custom sizes for Alloy 20 Steel Channel to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
The exceptional corrosion resistance of the Alloy 20 Steel Channel makes it a go-to choice for a wide range of demanding industries. You’ll find it forming the essential framework in chemical processing plants, pharmaceutical manufacturing, and food production facilities where harsh acids are common. It’s also ideally suited for components in marine environments, sulfur handling equipment, and heat exchangers, proving its worth anywhere that demands a material that can stand up to aggressive and corrosive conditions year after year.
