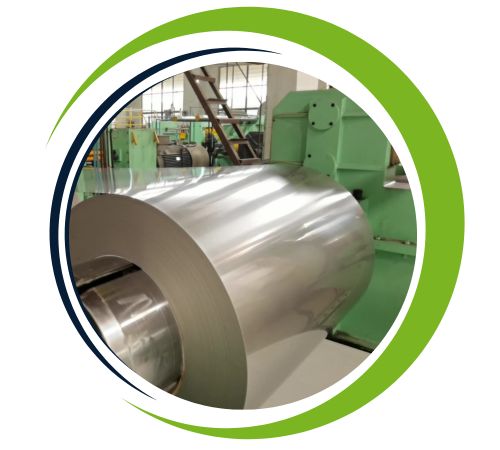

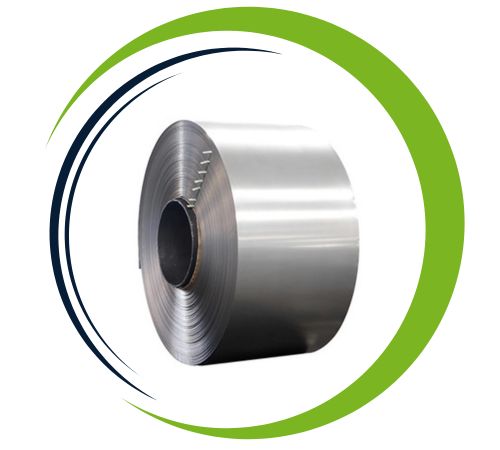

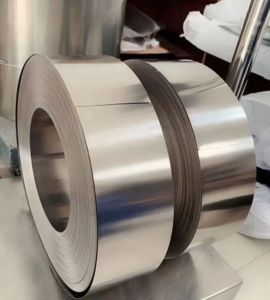

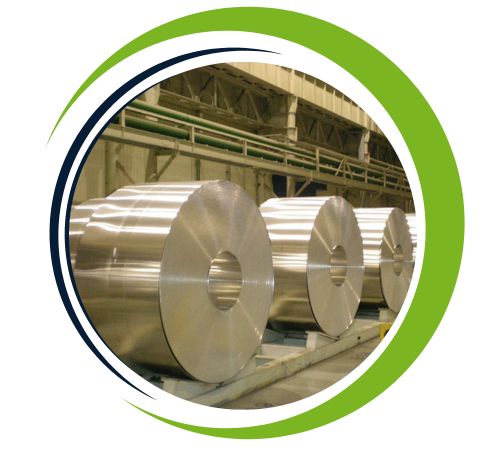

Diaz Sheetsandplates proudly serves Metro Manila and the Philippines as your reliable partner for premium Stainless Steel 316Ti foils. We are your dedicated source for this highly specialized material, providing not just products but expert solutions tailored to the demanding needs of advanced industries. Trust us to deliver the precise quality and performance your critical applications require, backed by our commitment to exceptional service and support.
This grade is an enhanced version of 316, where the addition of titanium (Ti) stabilizes the alloy against chromium carbide precipitation during welding. This means it maintains its excellent corrosion resistance even after exposure to high temperatures. Mechanically, these foils offer a typical tensile strength around 515 MPa and a minimum yield strength of 205 MPa, providing a robust yet formable material that can be easily fabricated into complex components.

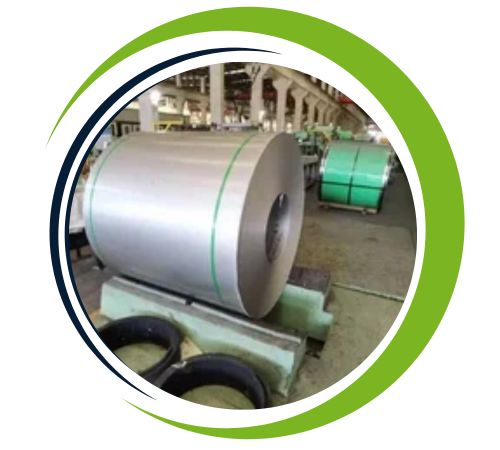

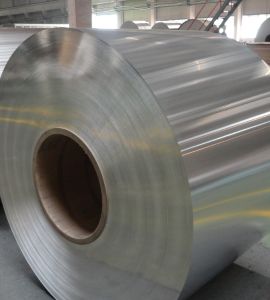

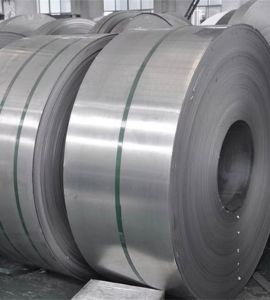

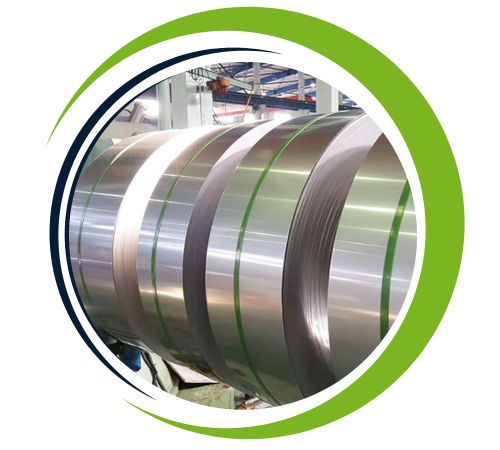

| Item | Stainless Steel 316ti foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |

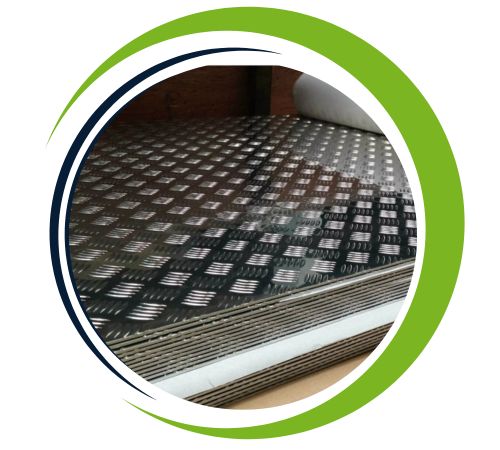

| Surface | the surface and finish of stainless steel 316ti foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | ||
| 316TI | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – | |
| max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 316TI | 515 | 205 | 35% | 75 | 205 | |
Stainless Steel 316Ti foils offer exceptional resistance to corrosion, especially in aggressive environments like chemical processing, marine, and high-temperature applications. The addition of titanium enhances its strength, making it ideal for use in structures exposed to heat and harsh chemicals. These foils maintain excellent weldability, formability, and durability, ensuring reliable performance. Additionally, Stainless Steel 316Ti provides superior pitting and crevice corrosion resistance compared to other stainless steels, making it a top choice for industries demanding high-performance materials with long-lasting reliability in extreme conditions.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316ti | 1.4571 | S31635 | SUS 316ti | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
The primary use of 316Ti foil is in environments too demanding for standard grades, especially where heat and corrosion work hand-in-hand. You’ll find it essential in chemical processing equipment, high-performance aircraft exhaust systems, and heat exchangers. It’s also the material of choice for detailed catalytic converters, specialized gaskets, and intricate filters, where its stability and resistance to aggressive media are paramount for longevity and reliability in critical operations.
