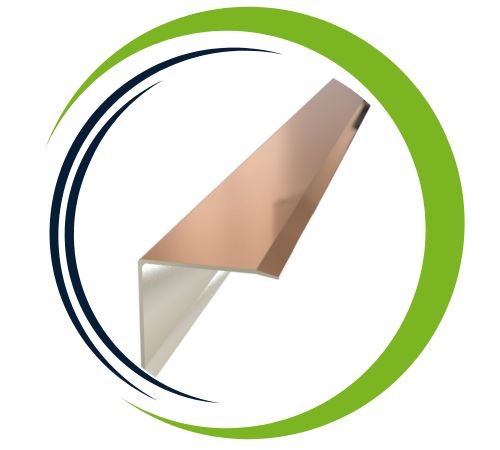

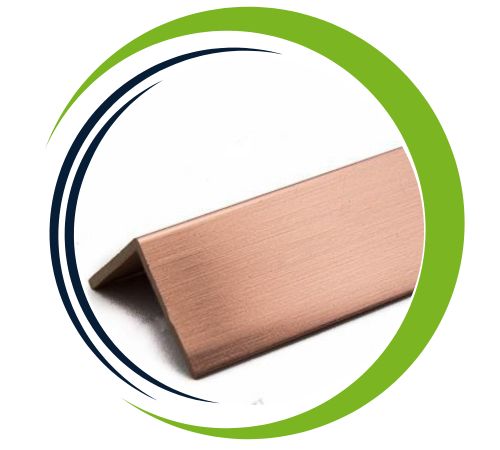

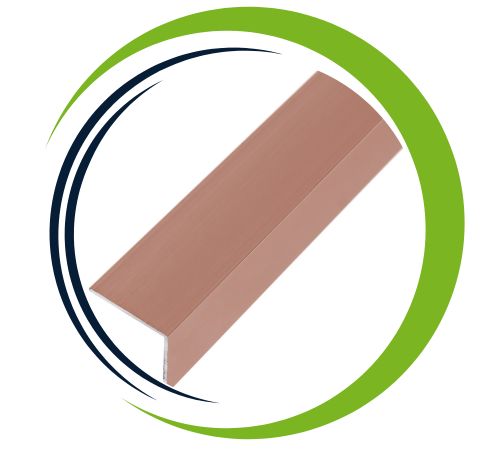

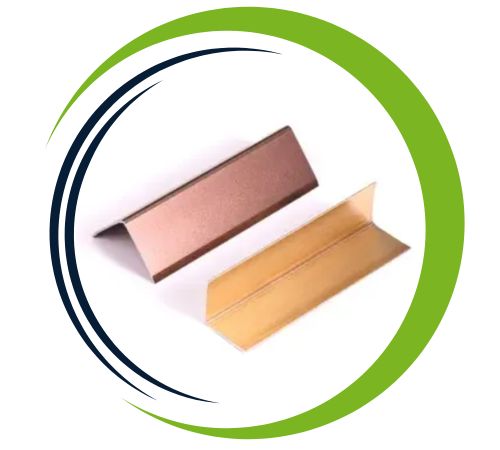

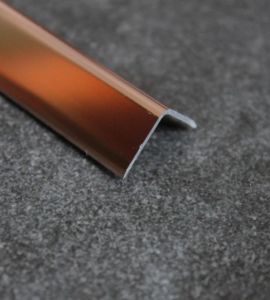

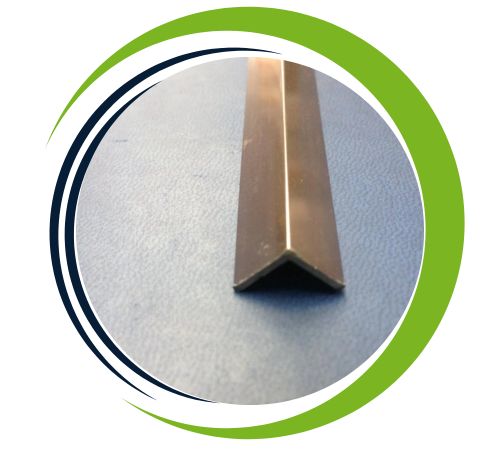

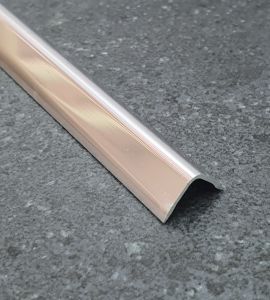

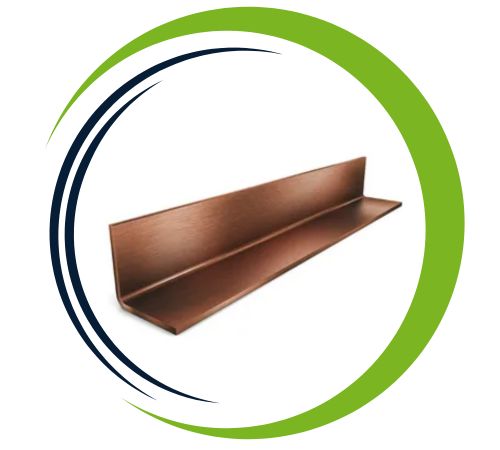

From the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for robust marine and industrial materials. We take pride in supplying high-quality Copper Nickel 90/10 Angle, a product forged with the resilience needed for the most demanding environments. Our commitment goes beyond mere supply; we ensure that every length of angle bar meets stringent standards, providing our clients with the reliability and durability essential for critical projects along the Philippine coastline and beyond.
The strength of this alloy lies in its composition, primarily a 90% copper and 10% nickel blend, with careful additions of iron and manganese. This specific recipe gives the material its renowned resistance to saltwater corrosion, preventing pitting and crevice attacks that plague lesser metals. Mechanically, it offers excellent tensile strength and good ductility, allowing it to be fabricated easily while standing up to heavy loads and harsh conditions without losing its integrity over time.
| Specifications | : | ASTM B151 / ASME SB151 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Cu-Ni 70/30 Angle | : | 5mm to 9mm |
| Cu-Ni 70/30 Channel | : | 40mm*20mm~300mm*300mm |
| Cu-Ni 70/30 Beam | : | 3″ thru 12.31″ |
| Cu-Ni 70/30 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90/10 | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Cupro Nickel 90/10 | 2.0872 | C70600 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Copper nickel 90/10 angles provide excellent corrosion resistance, especially in marine and coastal environments, due to resistance to sea corrosion, biocorrosion and stress corrosion cracking Their high strength-to-weight ratio makes them strong and capable reliable in construction applications. The alloys are easy to fabricate, weld and fabricate, increasing design flexibility. It also has excellent thermoelectric conductivity, ideal for heat exchangers and piping. When combined with iron and manganese, it resists corrosion and shock from turbulent water. A copper nickel 90/10 face ensures long, low-maintenance service, reducing overall operating costs.
This unique combination of properties makes Copper Nickel 90/10 Angle indispensable in shipbuilding and repair, where it’s used for structural supports, frames, and bracketing systems constantly exposed to seawater. Its reliability extends to offshore platforms, desalination plants, and power generation facilities, particularly in condenser systems and other critical water-handling infrastructure. Essentially, wherever corrosion is a constant threat, this angle bar provides a long-lasting, maintenance-friendly solution that ensures the structural safety and longevity of the entire installation.
